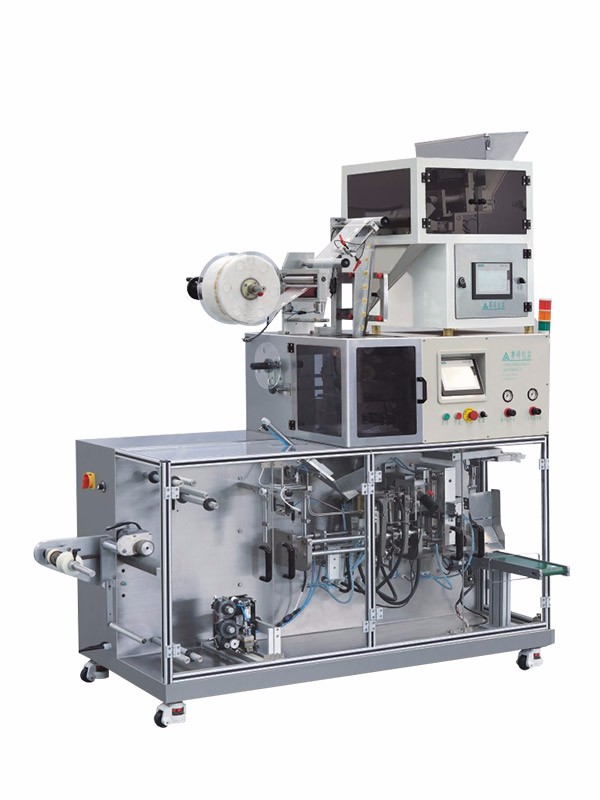

Triangular bag&envelope packaging machine — Load-cell weigher

Triangular bag&envelope packaging machine — Load-cell weigher

  1. Description

Applicable

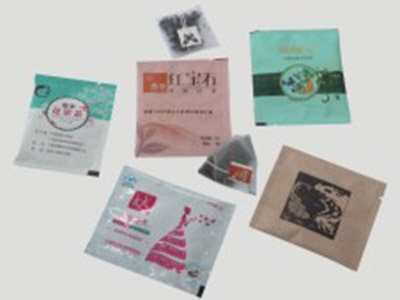

Green tea,black tea,tea,Pu'ertea,formula tea,Babao tea,health tea,Chinese medicine Pieces,and so on.

Performance characteristics

1.Through the ultrasonic sealing and cutting,to produce a beautiful bag and sealed three-dimensional three-dimensional tea bag

2.Automatic quantitative measurement can easily change the filling process in the production process

3.Using Siemens PLC control,touch screen operation,more stable performance,the operation is more simple,more humane

4.SMC pneumatic components,Schneider electrical components,to extend the service life of the machine

5.The use of mechanical and electrical integration design,replacement data without stopping / shut down

6.Packaging capacity: Triangle tea bag 2400-3600 bag / hour triangle bag inside and outside the bag 2100-3000 bag /hour

7.With a tape with a label material can be produced with a hanging tea bag

8.Triangular conical bag and four corners flat bag production process only one key switch

9.The use of horizontal machine directly connected triangle tea charter,the triangle tea bag wrapped in the outer bag,a bag of a bubble of independent packaging,one machine covers an area of small,space-saving

10.Outer bag with heat sealing composite film,the sealing temperature using the module communication control in the touchscreen operation,the pattern can be designed according to customer requirements,automatically with the standard

11.Can be installed nitrogen flling device nitrogen,to ensure that the product can be empty packet inspection

12.Install the empty packet detection and removal device to ensure the product qualification rate

13.Replace the bag width,no need to replace the bag making machine,eliminating the need to replace the bag time and cost




Main technical parameter

The number of unwinding2個
Particle content≤2±0.5g/袋(其他規格可定制)
Packaging material requirements內袋:尼龍、無紡布、玉米纖維、PET等超聲波封口材料
Production speed

外袋:可熱封復合

三角包內外袋35-50袋/分(具體根據物料)

Tea bag size

內袋:58*60(140mm)

外袋:80*90mm,90*90mm,90*100mm

內袋:68*70(160mm)外袋:100*115mm(可定制)

內袋:80*80(180mm)外袋:110*120mm

Roll out diameter≤Φ400
Wrap the core diameter of the rollΦ76
Air pressure≥1.2Mpa(由定做方保證供氣)
Operator1人
The motor power of the machine約 3.5 Kw(220V)
Equipment shape

L2100*W1000*H2200(mm)

Equipment weight約900kg
